da admin | Mag 26, 2026 | Isola
Caratteristiche materiale:

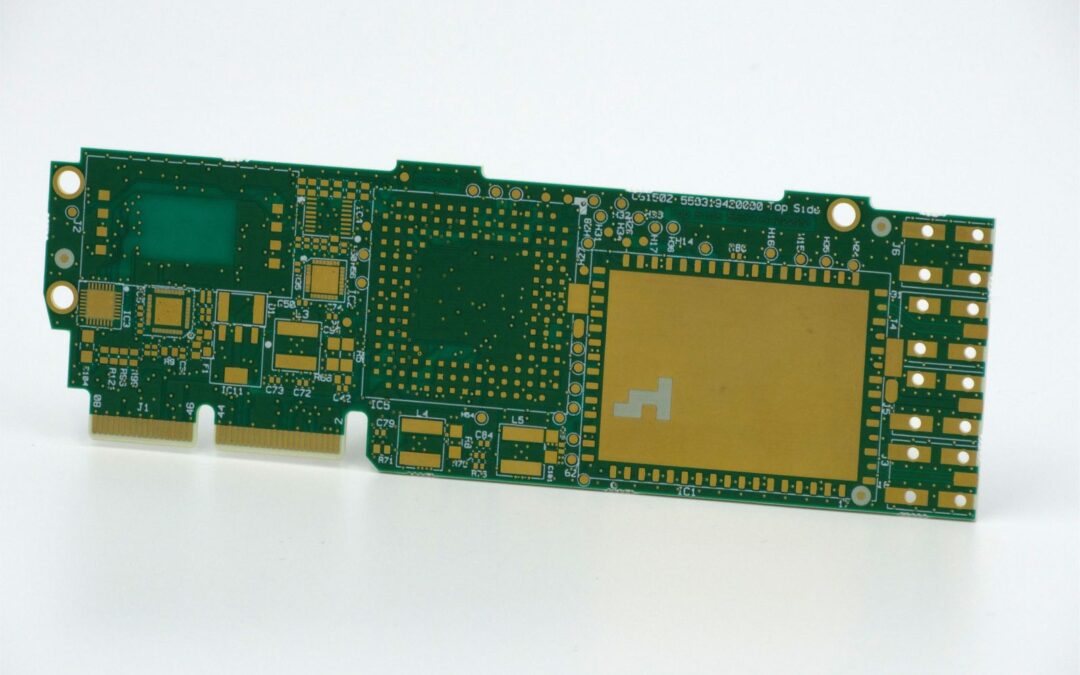

S680 AG is suitable for many of today’s commercial RF/ microwave printed circuit
designs. It features a dielectric constant (Dk) that is stable between -55°C and +125°C
up to W-band frequencies. In addition, IS680AG offers an ultra-low dissipation factor
(Df), making it an extremely cost-effective alternative to PTFE and other commercial
microwave laminate materials in double sided application
Settori di appartenenza:
- Tg : 200°
- Dk(10 GHz) : 3.0 – (10 GHz) : 3.48
- Df(10 GHz) : 0.0020 – (10 GHz) : 0.0029
UL – File Number E41625
da admin | Mag 26, 2026 | Isola
Caratteristiche materiale:

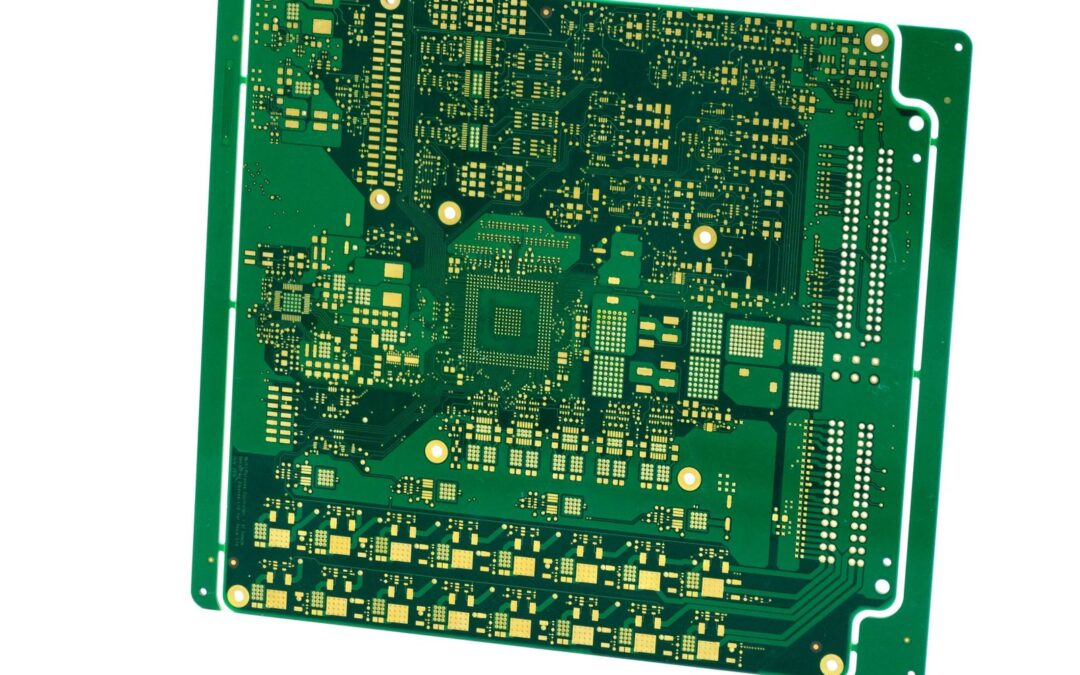

FR408HR is a high-performance FR-4 resin system with a
230°C (DMA) Tg for multilayer PCB applications where
maximum thermal performance and reliability are required.
The FR408HR system is also laser fluorescing and UV blocking for maximum
compatibility with Automated Optical Inspection (AOI) systems, optical positioning
systems and photo-imagable solder mask imaging.
Settori di appartenenza:
- Tg : 150°
- Dk(100 MHz) : 3.9 – (500MHz) : 4.0
- Df(100 MHz) : 0.020 – (500MHz) : 0.022
UL File Number: E41625
da admin | Mag 26, 2026 | Isola
Caratteristiche materiale:
FR408HR is a high-performance FR-4 resin system with a
230°C (DMA) Tg for multilayer PCB applications where
maximum thermal performance and reliability are required.
The FR408HR system is also laser fluorescing and UV blocking for maximum
compatibility with Automated Optical Inspection (AOI) systems, optical positioning
systems and photo-imagable solder mask imaging.
Settori di appartenenza:
- Tg : 190°
- Dk(100 MHz) : 3.72 – (1 GHz) : 3.69
- Df(100 MHz) : 0.0072 – (1 GHz) : 0.0091
UL – File Number E41625
da admin | Mag 26, 2026 | Isola
Caratteristiche materiale:

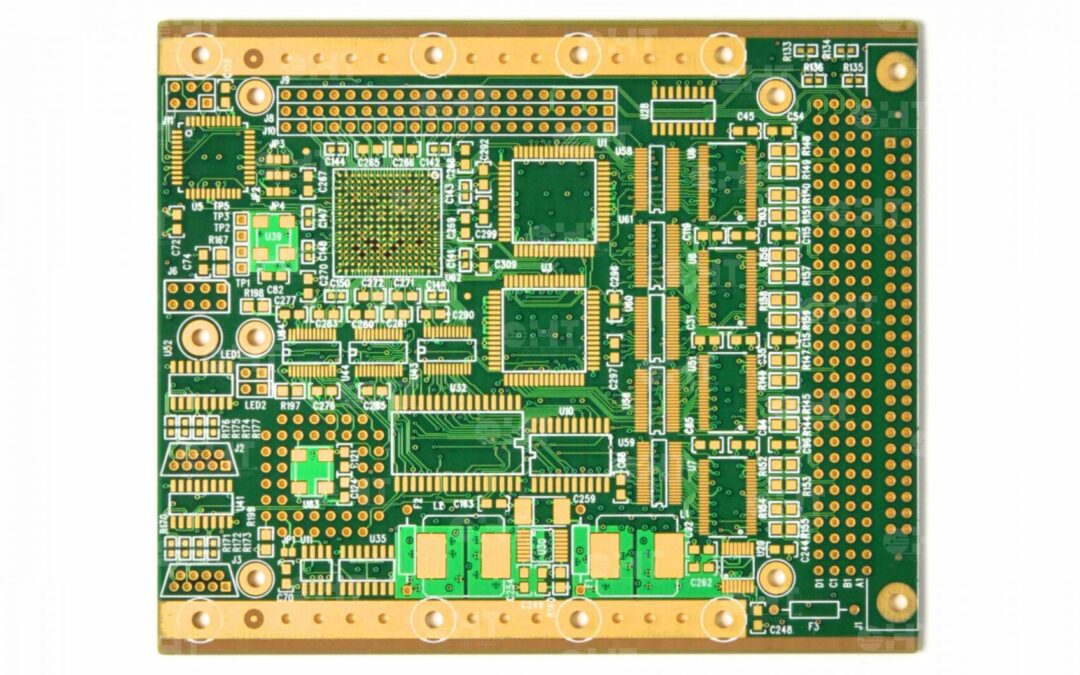

FR408 is a high-performance FR-4 epoxy laminate andprepreg system designed for advanced circuitryapplications.
Qualified to UL’s MCIL Program
RoHS Compliant
FR-4 process compatible
UV blocking and AOI fluorescence
Settori di appartenenza:
- Tg : 180°
- Dk(100 MHz) : 3.69 – (1 GHz) : 3.66
- Df(100 MHz) : 0.0094 – (1 GHz) : 0.01117
UL – File Number E41625
da admin | Mag 26, 2026 | Dupont
Caratteristiche materiale:

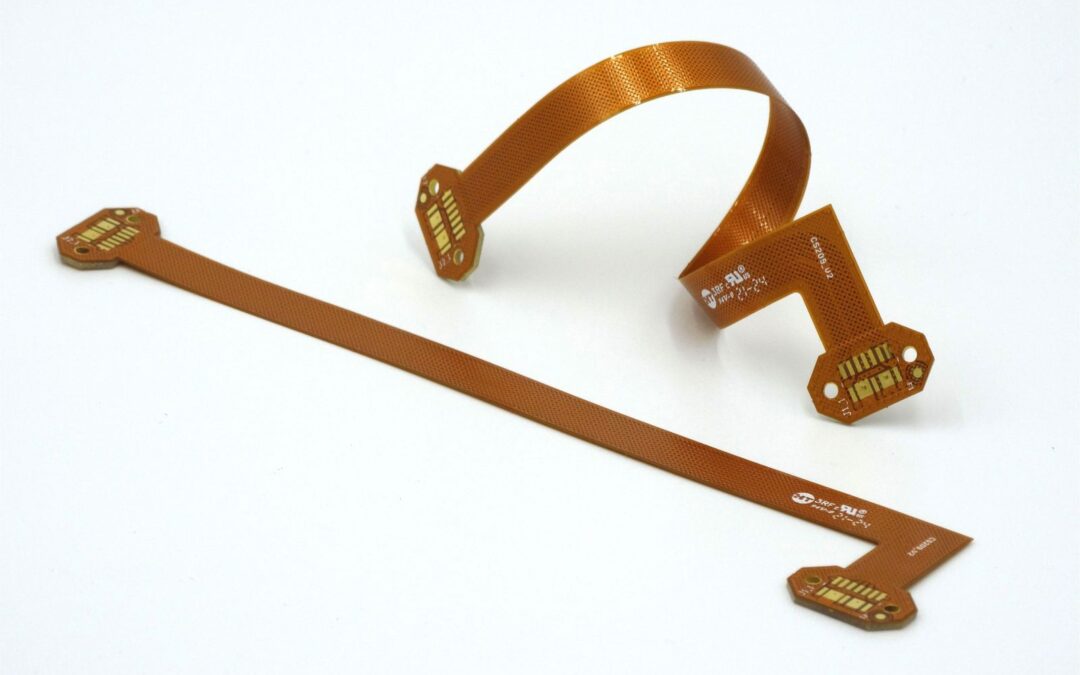

DuPont™ Pyralux® AP is a Double-sided Copper-clad Laminate
featuring an adhesive-less, all-polyimide dielectric laye
Low loss all-polyimide dielectric for superior signal integrity
• Excellent bond strength affords high reliability
• High thermal resistance to facilitate processing
• Balanced and unbalanced constructions available
• Certified to IPC 4204/11
• UL 94 V-0, UL File E124294
• RoHS Compliant
Settori di appartenenza:
- Tg : 220°
- Dk(1 MHz) : 3.4 – (10 GHz) : 3.2
- Df(1 MHz) : 0.002 – (10 GHz) : 0.003
